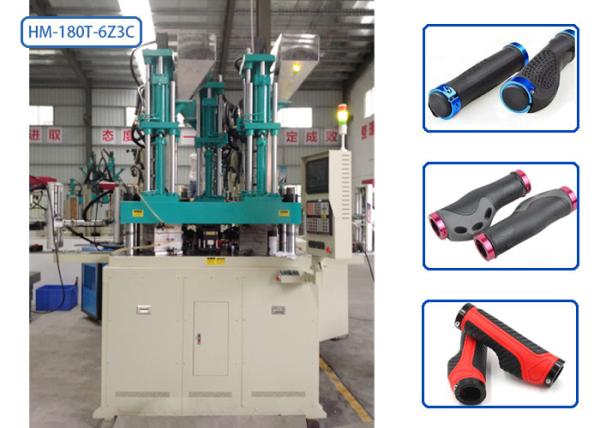

Full Automatic 3 colors Vertical Moutain Bike Grips Injection Molding Machine,Patented
Vertical Moutain Bike Grips Injection Molding Machine can do
3 Colors / materials PVC Motorcyle Grip
3 Colors / materials PP Motorcyle Grip
3 Colors / materials PE Motorcyle Grip
3 Colors / materials PVC Cycle Grip
3 Colors / materials PP Cycle Grip
3 Colors / materials PE Cycle Grip
3 Colors / materials PVC Electricalcycle handle bar grips
3 Colors / materials PP Electricalcycle handle bar grips
3 Colors / materials PE Electricalcycle handle bar grips
This machine soloves 5 main problems for bike grips manufactory
1. This machine is equal to 3 single color injection machines.
One machine can make 3 colors or 3 different materials grips one stop.
2. This machine can produce 2 pcs 3 colors /3 different materials grips in 25 seconds.
No any machine can do that in so short time.
3. Save labor cost for boss. It is difficult to recruite a qualified operator to manage the machine.
This machine is full automatic. Once it starts, it can work full automatically. No need worker to operate it.
4. Small space. It only need 3*3*4m(W*L*H) space.
5.Saving electricity power and water.
Features:
1. Make 3 colors / materials motorcycle grips automatically
2. Full auto, no need operater, work 7 days,24hours
3. High efficiency,high capacity, reduce cost, cycle time=24 second, 2 cavities
4. Servo motor equiped,saving power by 60%
5. One-stop purchase, a whole set solution is available.
6. On-site technical support and romate technical support
Technical Parameters:
| Injection Unit |
| Screw Diameter | mm | 42 |
| Screw Stroke | mm | 160 |
| Shot Volume | cm3 | 221 |
| Injection Weight | g/oz | 206/7.3 |
| Plasticizing Capacity | g/s | 22 |
| Max. Injection Pressure | kgf/cm2 | 1428 |
| Injection Rate | cm3/s | 138-110 |
| Injection Speed | mm/s | 100-80 |
| Screw Speed | r.p.m. | 0-250 |
| Nozzle Force | tf | 2.4 |
| Nozzle Ejection Stroke | mm | 45 or more |
| Clamping Unit |
| Clamping Force | tf | 180 |
| Opening Force | tf | 39 |
| Clamping Stroke | mm | 250 |
| Min. Mold Height | mm | 220 |
| Max. Distance | mm | 470 |
| Distance between Columns | mm | 1040*765 |
| Max. Mold Size | mm | 300*250 |
| Platens Size | mm | 1400*1125 |
| Ejector Stroke | mm | 65 |
| Ejector Force | tf | 17.5 |
| Qty of ejector | pcs | 1*3 |
| System Pressure | kgf/cm2 | 140 |
| General |
| Oil Tank Cpacity | L | 420 |
| Motor Power | KW | 14*3 |
| Heater Power | KW | 4.2*3 |
| Temperature Stage | | 5*3 |
| Working Table Height | mm | 1250 |
| Dimensions |
| Machine Size | mm | 3360*1545*3550 |
| Weight | T | 9.2 |
| Packing Size | mm | 3500*1700*2000+1500*1100*1700 |
| Packing Weight | T | 9.8 |
Key parts List
1. PLC Brand name:LNC Original of Country:TAIWAN
2. Servo Motor Brand name:INNOVANCE Original of Country:CHINA
3. Screw and barrel Brand name:HUAYUE Original of Country:TAIWAN
4. Electric motor Brand name:YONGYUAN Original of Country:CHINA
5. Seal kit Brand name:HALLITE Original of Country:CHINA
6. Solenoid valves Brand name:Yuken Original of Country:TAIWAN
7. Proporional valves Brand name:Yuken Original of Country:TAIWAN
8. Hydraulic motor Brand name:White Original of Country:United States
9. Linear Scale Brand name:Gefran Original of Country:Italy
10. Gear pump Brand name:ECKERLE Original of Country:Germany
11. Electrical Connectors Brand name:Schneider Original of Country:France
12. Tie bar Brand name:General Original of Country:Taiwan
13. Heater Brand name:Schneider Original of Country:France
Accessory List
| 1 | Injection Machine | x | 1 |
| 2 | Robot | x | 2 |
| 3 | Mold | x | 2 |
|
Optional Accessories(Charged)
|
| 1 | Water Chiller | x | 1 |
| 2 | Grinder | x | 1 |
| 3 | Blender | x | 1 |
| 4 | Dryer | x | 1 |
| 5 | Loading machine | x | 1 |
| 6 | Honeycomb Dehumidifiers | x | 1 |
| 7 | Mold Temperature Controller | x | 1 |
Price List
| QTY=1 set | 89000-99000 | USD/set | FOB Shenzhen |
| QTY=2-5 set | 2-3% off | USD/set | FOB Shenzhen |
| QTY=6-10 set | 5-7% off | USD/set | FOB Shenzhen |
| More | Negotiable |
After-sales service
QTY=1 PCS,online technical support
QTY=2-4 PCS,our techincians on site but tickets, hotel and food are borne by you and labor fee 100 USD/day/person
QTY=5-6 PCS,techincians on site ,labor free but hotel and food are borne by you.
View video on Youtube
More Details of 3 colors Vertical Moutain Bike Grips Injection Molding Machine

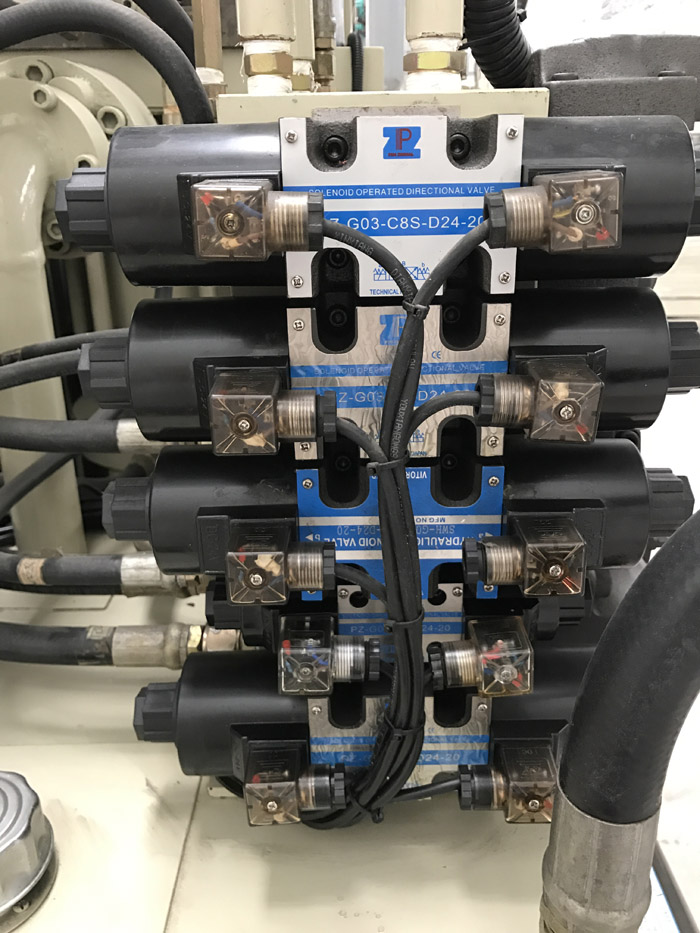

Solenoid valves Taiwan brand:Yuken

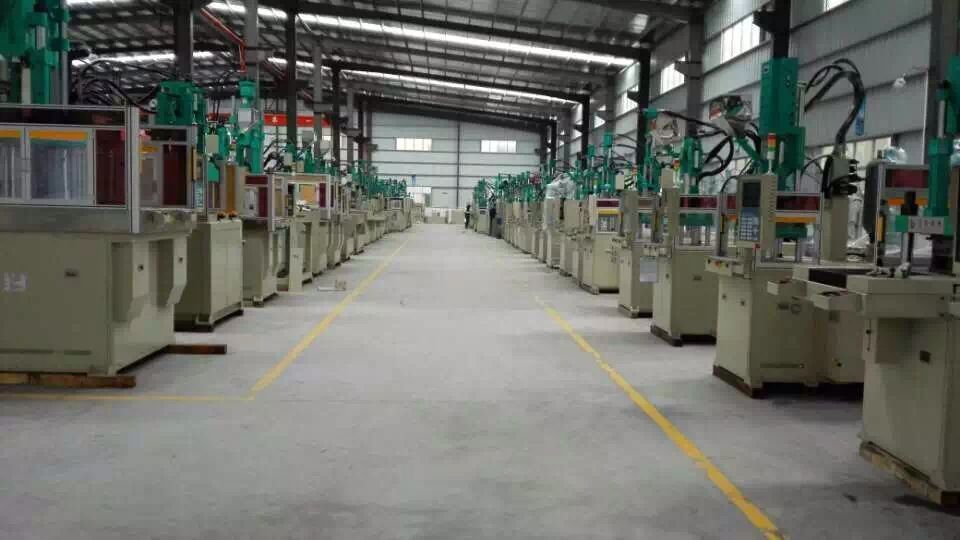

Company & Workshop
Vertical Moutain Bike Grips Injection Molding Machine
