2 Cavities Automatic Injection Moulding Machine 3 Colors Hockey Stick Grips , 180T
Hockey Stick Automatic Injection Moulding Machine can do
Colorful Hockey Stick Grips
3 Colors Baseball Stick Grips
Hard and soft Hockey Stick Grips
3 Materials Golf Stick Grips
TPU Hockey Stick Grips
Kraiburg TPE Fencing Grips
Features:
Optimize the match of energy demand and realize automatic adjustments.
Improve injection precision
Save power and water, resulting in environment-protection and energy-saving
Quick response and low noise.
Technical Parameters:
| Injection Unit | Screw Diameter | mm | 42 |
| Screw Stroke | mm | 160 |
| Shot Volume | cm3 | 221 |
| Injection Weight | g/oz | 206/7.3 |
| Plasticizing Capacity | g/s | 22 |
| Max. Injection Pressure | kgf/cm2 | 1428 |
| Injection Rate | cm3/s | 138-110 |
| Injection Speed | mm/s | 100-80 |
| Screw Speed | r.p.m. | 0-250 |
| Nozzle Force | tf | 2.4 |
| Nozzle Ejection Stroke | mm | 45 or more |
| Clamping Unit | Clamping Force | tf | 180 |
| Opening Force | tf | 39 |
| Clamping Stroke | mm | 250 |
| Min. Mold Height | mm | 220 |
| Max. Distance | mm | 470 |
| Distance between Columns | mm | 1040*765 |
| Max. Mold Size | mm | 300*250 |
| Platens Size | mm | 1400*1125 |
| Ejector Stroke | mm | 65 |
| Ejector Force | tf | 17.5 |
| Qty of ejector | pcs | 1*3 |
| System Pressure | kgf/cm2 | 140 |
| General | Oil Tank Cpacity | L | 420 |
| Motor Power | KW | 14*3 |
| Heater Power | KW | 4.2*3 |
| Temperature Stage | | 5*3 |
| Working Table Height | mm | 1250 |
| Dimensions | Machine Size | mm | 3360*1545*3550 |
| Weight | T | 9.2 |
| Packing Size | mm | 3500*1700*2000+1500*1100*1700 |
| Packing Weight | T | 9.8 |
Key parts List
1. PLC Brand name:LNC Original of Country:TAIWAN
2. Servo Motor Brand name:INNOVANCE Original of Country:CHINA
3. Screw and barrel Brand name:HUAYUE Original of Country:TAIWAN
4. Electric motor Brand name:YONGYUAN Original of Country:CHINA
5. Seal kit Brand name:HALLITE Original of Country:CHINA
6. Solenoid valves Brand name:Yuken Original of Country:TAIWAN
7. Proporional valves Brand name:Yuken Original of Country:TAIWAN
8. Hydraulic motor Brand name:White Original of Country:United States
9. Linear Scale Brand name:Gefran Original of Country:Italy
10. Gear pump Brand name:ECKERLE Original of Country:Germany
11. Electrical Connectors Brand name:Schneider Original of Country:France
12. Tie bar Brand name:General Original of Country:Taiwan
13. Heater Brand name:Schneider Original of Country:France
Accessory List
| 1 | Injection Machine | x | 1 |
| 2 | Robot | x | 3 |
| 3 | Mold | x | 3 |
|
Optional Accessories(Charged)
|
| 1 | Water Chiller | x | 1 |
| 2 | Grinder | x | 1 |
| 3 | Blender | x | 1 |
| 4 | Dryer | x | 1 |
| 5 | Loading machine | x | 1 |
| 6 | Honeycomb Dehumidifiers | x | 1 |
| 7 | Mold Temperature Controller | x | 1 |
Price List
| QTY=1 set | 89000-99000 | USD/set | FOB Shenzhen |
| QTY=2-5 set | 2-3% off | USD/set | FOB Shenzhen |
| QTY=6-10 set | 5-7% off | USD/set | FOB Shenzhen |
| More | Negotiable |
After-sales service
QTY=1 PCS,online technical support
QTY=2-4 PCS,our techincians on site but tickets, hotel and food are borne by you and labor fee 100 USD/day/person
QTY=5-6 PCS,techincians on site ,labor free but hotel and food are borne by you.
View video on Youtube
More Pictures

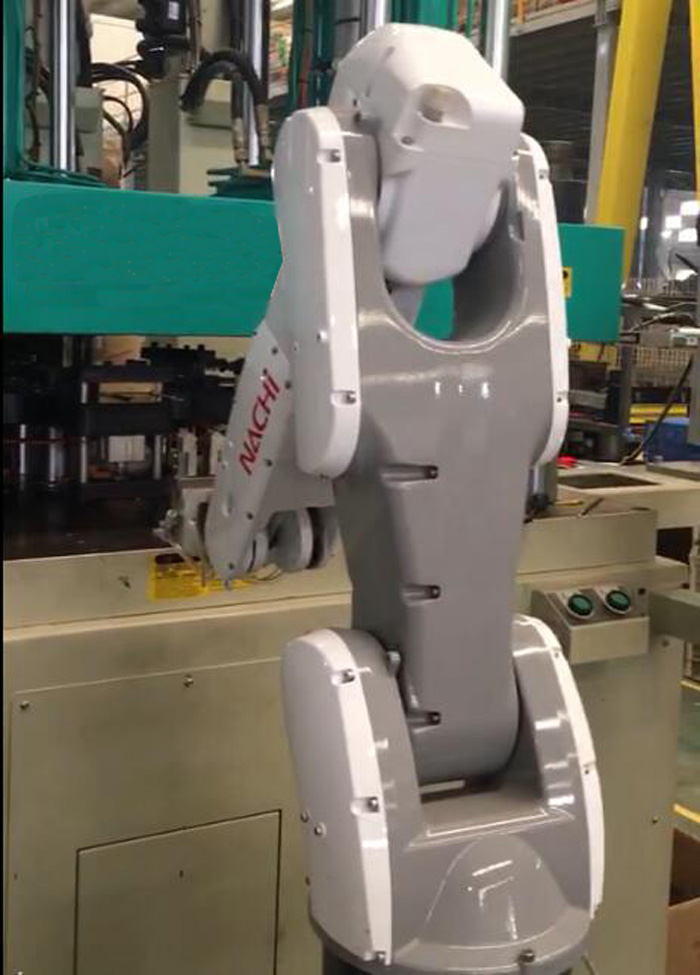

6 axis robot to loading and unloading

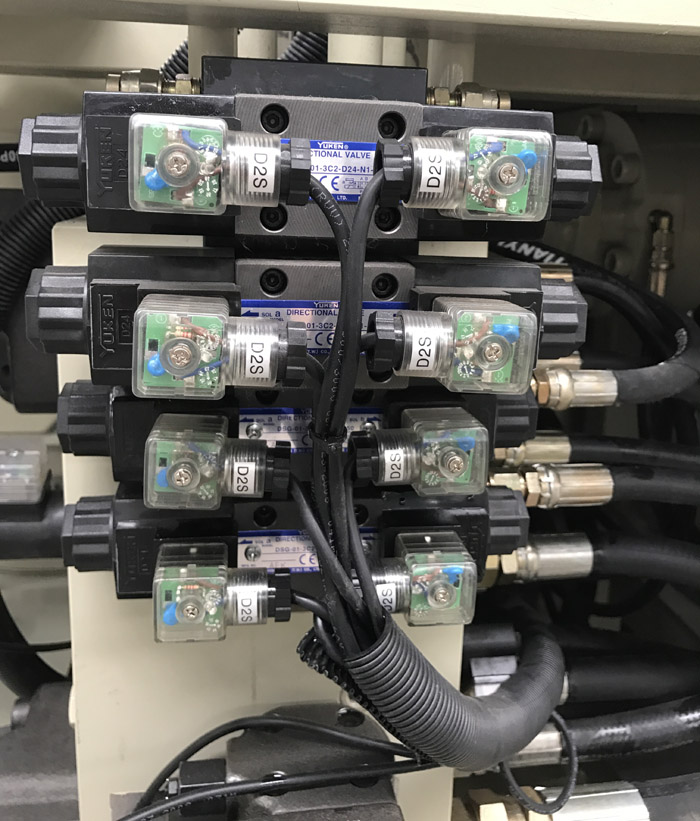

Components of Hockey Stick Automatic Injection Moulding Machine

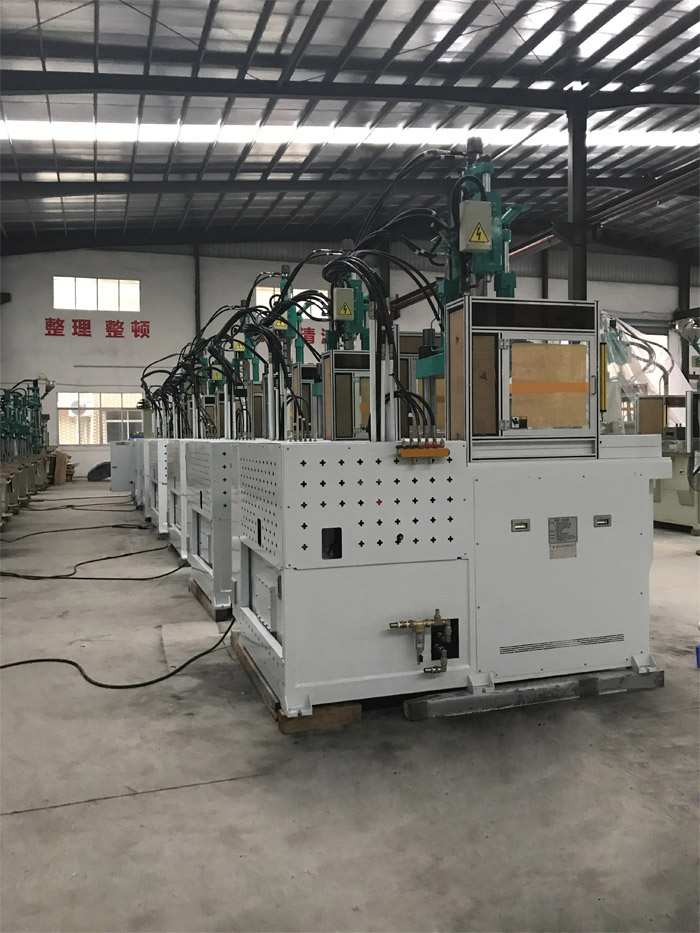

Sample Machine
Sample Machine of Hockey Stick Automatic Injection Moulding Machine
